Rivfly TR Series: Engineering a True Rotary Fly Tying Vise
I’ve spent most of my career solving tolerance problems in high-precision gearboxes. When a gear mesh is off by 0.01mm, the whole system fails. You feel it. You hear it.
When I started fly tying seriously, I felt the same thing — not in gears, but in my vise. The hook would rotate, but not cleanly. The axis drifted. Materials wrapped unevenly. Every mid-range rotary fly tying vise I tried had the same underlying problem dressed up in different knobs and finishes.
So we built our own. This is a record of the decisions we made, and why.
What “True Rotary” Actually Means — and Why Most Vises Aren’t
The term “rotary vise” gets used loosely in fly tying. It’s worth being precise.
A true rotary fly tying vise means the hook’s shank axis is perfectly aligned with the vise’s rotation axis. When you spin the arm, the hook rotates in place — like a lathe. Material wraps evenly because the reference point never moves.
A semi-rotary vise rotates around a fixed post. The jaw swings in an arc. The hook traces a circle, not a true spin. For tightly wrapped bodies, even dubbing distribution, or anything that rewards consistent material tension — the difference is real.

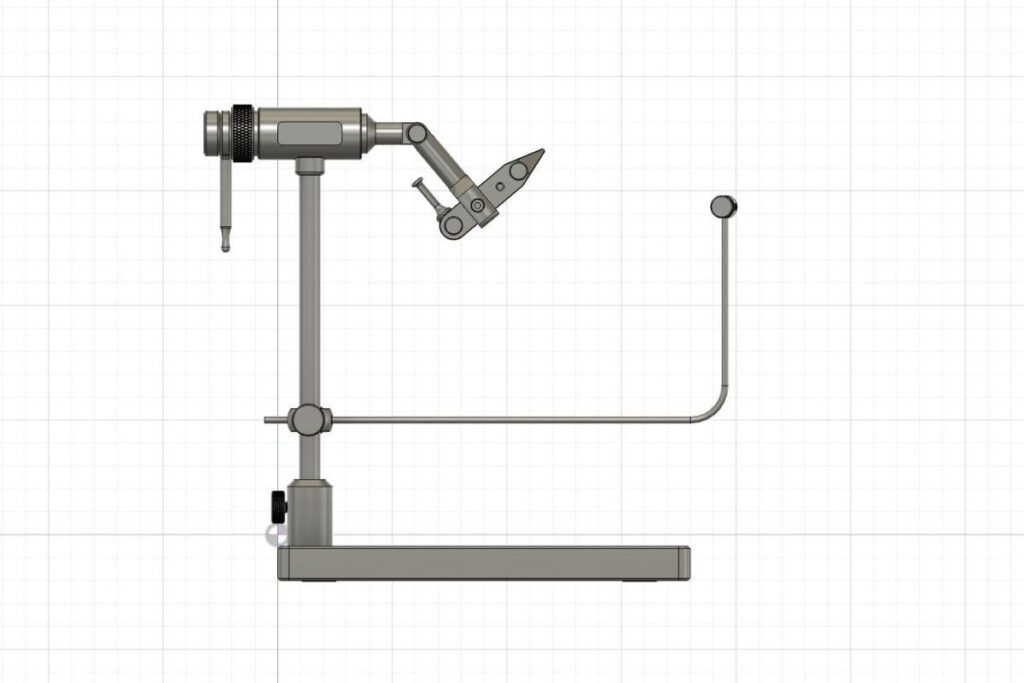

The TR Series uses an adjustable front cantilever arm. The jaw position is set so the hook shank sits directly on the rotational centerline, regardless of hook size. A #28 midge and a 4/0 streamer hook are both on-axis. That’s the geometry we built around.
The Jaw: Parallel Clamping, 40CrMo Steel, QPQ Nitrided
We covered the V-jaw problem in detail in an earlier post — what makes the best fly tying vise, and why the V-jaw fails. The short version: a jaw that opens like scissors applies uneven pressure across the hook shank. Under wrapping tension, that hook moves.
The TR Series jaw maintains true parallel contact across its full range. Both jaw faces stay flat and perpendicular to the hook shank, from a #28 dry fly hook to a 4/0 saltwater streamer. Clamping force is distributed evenly, not concentrated at a pivot point.
Material: 40CrMo alloy steel, processed with QPQ salt bath nitriding — the same surface treatment used in precision industrial gears. The result is a jaw that resists corrosion, reduces friction, and holds its geometry under repeated use. The finish is a flat matte black that won’t reflect light into your eyes mid-session.
The jaw is quick-change. And because the cantilever arm flips, you can reverse the jaw orientation and switch to left-handed operation in under a minute.

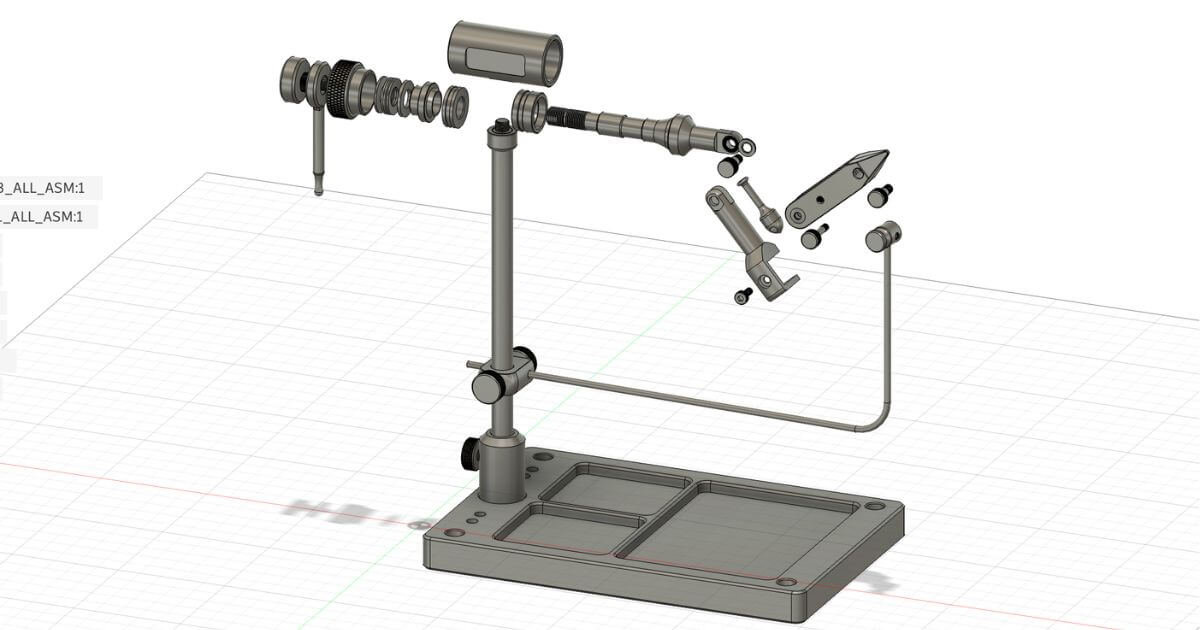

The Rotation System: Dual Bearings, Rear Drag
A vise that advertises “smooth rotation” and delivers a plastic bushing is one of the more common disappointments in this price range.
The TR Series rotates on two precision sealed ball bearings, concentric to the rotation axis. Dual-bearing setups eliminate the wobble that single-bearing or bushing designs develop under lateral load — the kind of load you apply every time you tension a wrap.
The brake is at the rear of the arm. A rear drag dial stays out of your dominant hand’s working space. You adjust rotation resistance without repositioning your grip or looking away from the hook. It has damping — you’re dialing in a feel, not toggling between locked and free.
The Base: 6061 Aluminum, Magnetic Hook Tray, Grip Pad
The base is 6061-T6 aluminum, anodized. The same alloy used in aerospace structural components — chosen here because it machines cleanly, holds tolerance, and doesn’t add unnecessary weight.

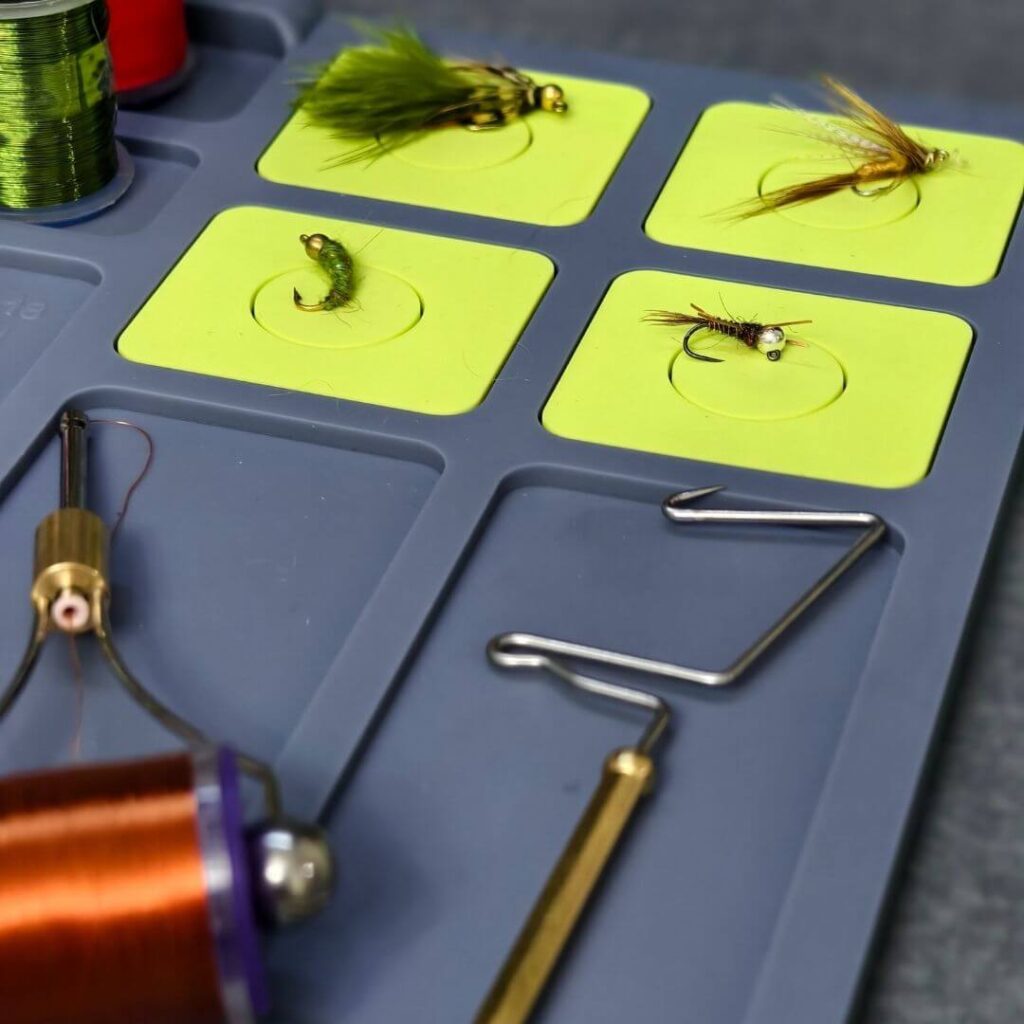

There’s a recessed magnetic zone built into the base surface. Drop a hook — it stays. We run the same principle in the Forge Series Magnetic Tying Mat; it belongs on the vise base too. Small hooks on smooth aluminum are a frustrating variable. The magnet removes it.
The remaining tray area is open — space for scissors, bobbin, thread spool, whatever’s in rotation during a session.
The pedestal base ships with a grip pad on the bottom. We chose this over a heavier cast base — not because weight doesn’t matter for stability, but because we think a vise that’s unpleasant to move around the bench, or costs more to ship to your door, is a design compromise we weren’t willing to make. The grip pad anchors on any desk surface without mechanical clamping. A dedicated clamp-mount version is in development.
Material Breakdown
| Component | Material | Reason |
|---|---|---|
| Post | Stainless steel | Rigidity, corrosion resistance |
| Body / Base | 6061-T6 aluminum, anodized | Strength-to-weight, machinability |
| Jaw | 40CrMo steel, QPQ nitrided | Gear-grade surface hardness, corrosion resistance |
| Knobs | Stainless steel | Tactile feedback, long-term durability |
| Rotation bearings | Dual precision sealed ball bearings | Concentric rotation, consistent drag feel |
Where We Are Now
The design is locked. The first physical prototype is scheduled for June 2026. That sample goes straight onto a tying bench — not for photography, for actual use. Midge patterns, Euro nymphs, articulated streamers. The kind of session that reveals what CAD doesn’t.
We’re not announcing a launch date until the prototype passes that test.
If you want to be in the first group to see the prototype footage and hear about Batch 1 availability, the waitlist is the place to be.
→ Join the TR Series Waitlist — No payment required
For more on what separates a well-engineered vise from the rest, the earlier post covers the fundamentals: what the best fly tying vise actually requires.
Tight lines.
— Kevin
